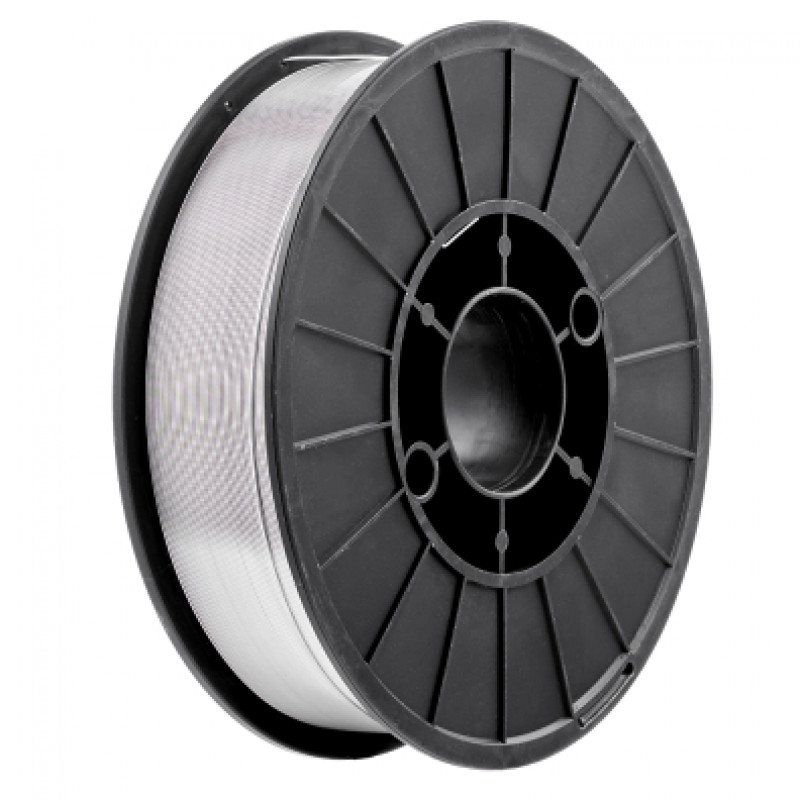

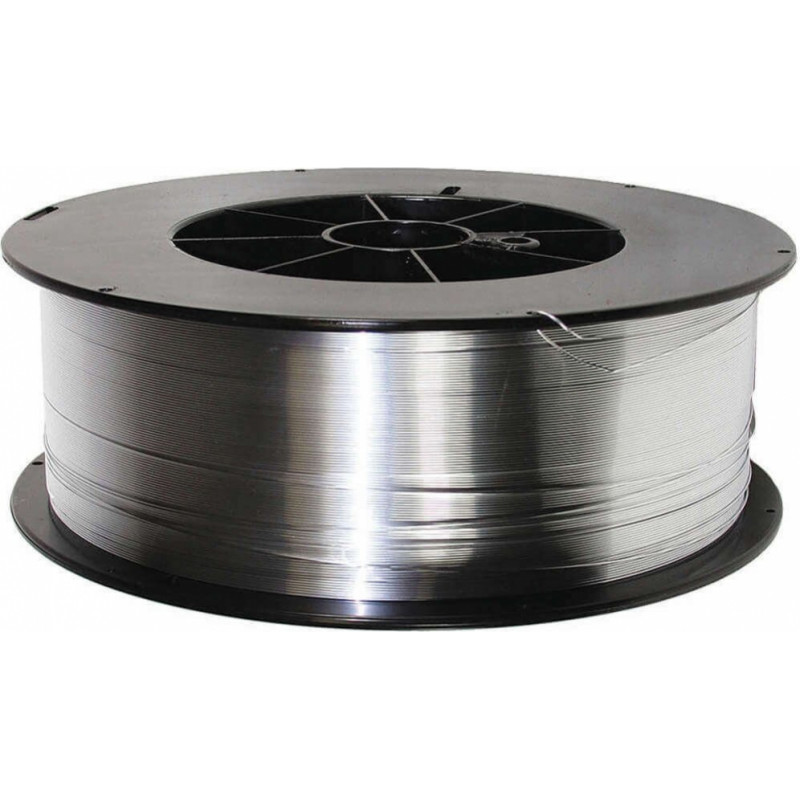

Welding wire for aliuminum 1.2mm 1kg

General purpose aluminum welding wire with 5% silicon additives for welding various aluminum alloys containing no more than 2% alloying elements or 7% Si, e.g. 2014, 3003, 3004, 5052, 6060, 6061, 6063, 6101 etc.
Exceptional smoothness and excellent throughput are ensured
Benefits: excellent ignition properties, high arc stability at high currents, good corrosion resistance of the wire, welding in all positions
Applications: ER4043 is designed for welding 6xxx series aluminum alloys. It can also be used to weld 3xxx series alloys or 2xxx alloys.
The most commonly used ER4043 filler is for auto parts, truck trailers and bicycles.
Classification: AWS A5.10 ER4043. ABS BV CCS DNV GL LR NK RINA CE DB
Polarity DC +
Chemical properties: Si 4.5-6.0, Fe 0.3, Cu 0.05, Mn 0.04, Mg 0.04, Zn 0.05, Cr 0.05, Ti 0.005
Mechanical properties Strength 131 Mpa; Tensile strength 295 Mpa; A 5 d 28; KV 20°C 150 J; KV -20°C 90 J; KV -40°C 50 J
Recommendations: wire Ø 0.8 mm; thickness < 5 mm; voltage 16 ► 28 V; current 60 ► 200 A
Gas protection according to EN ISO 14175; 100% CO2 (C1) or argon / CO2 (M21, 8 < 20% CO2)
