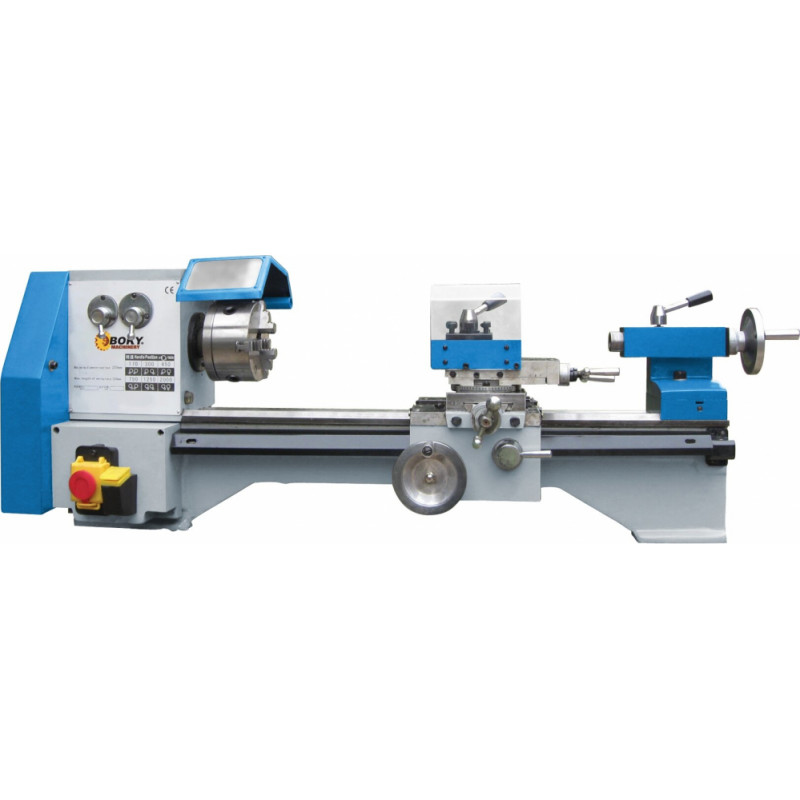

Boky Machinery Metal lathe Ø20mm 550W

BOKY MACHINERY

Boky Machinery Metal lathe Ø20mm 550W

Availability: In Stock
ID: 12692
Product Code: TBL20520
1,519.52€
(Ex Tax: 1,255.80€)

Delivery options

  • Pick-up Parcel

Imagem



  • Pick-up in our store

Stacijas iela 36, Valmiera

  • Delivery by courier

Notes

  • Receiving goods at our store is free.
  • If you have chosen to receive the product(s) in one of our stores, it would be advisable to contact us by phone first. +37129185988 or e-mail to find out about the availability of the product in the store and in the warehouse.
Specification
Description
Related products

Specification

svars: 130
Weight, kg: 130

Description

Voltage/power 230V/0.37 kW
Distance between centers 520 mm
Center height above the frame 110 mm
Turning details max. Ø above the frame 200 mm
Turning details max. Ø above the saddle 122 mm
Spindle hole Ø 20 mm
Spindle taper bore MK3 (No.3 Morse)
Spindle speeds (6) 170 - 1950 rpm
Longitudinal feed/range (5) 0.04 - 0.2 mm/rev
Metric threads turning (17) 0.25 - 3.0 mm
Inch threads turning (17) 8 - 48"
Saddle travel in Z axis 115 mm
Max travel of tailstock barrel 50 mm
Center rear support cone MK2 (No.2 Morse)
Dimensions 1250 x 570 x 560 mm
Weight about 110 kg
