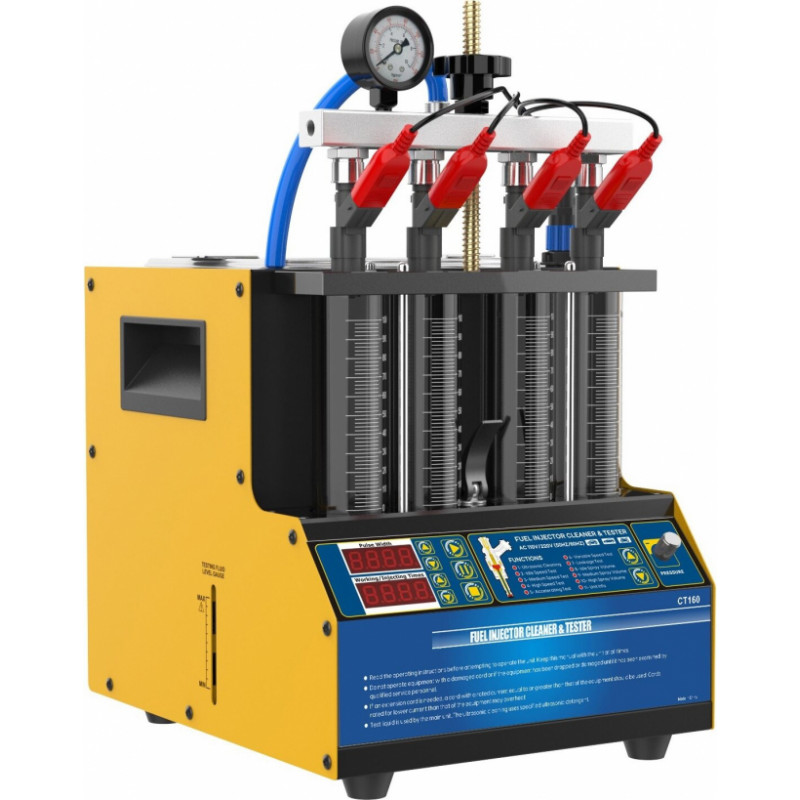

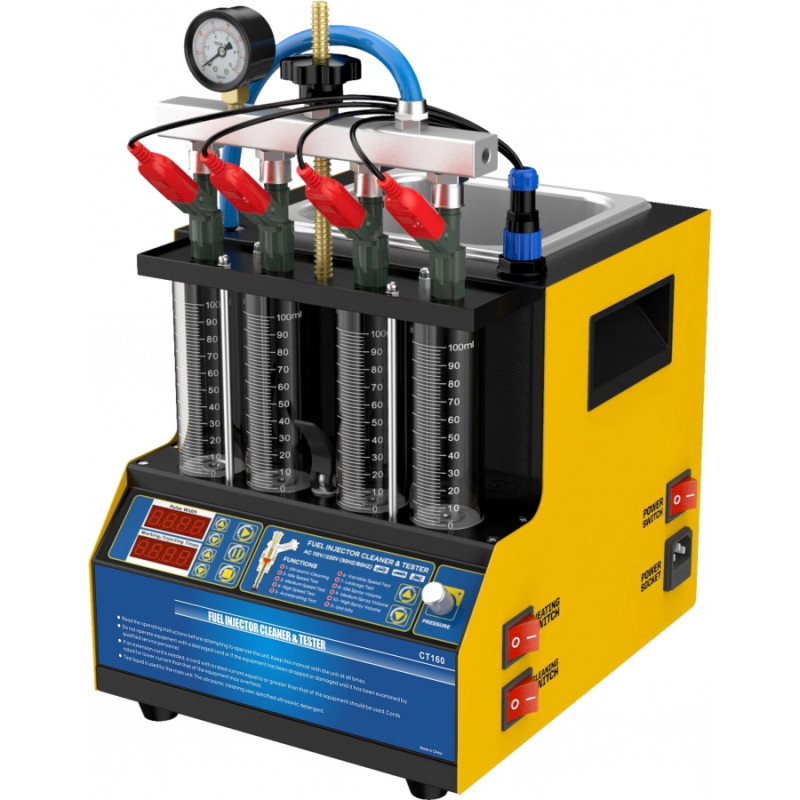

Fuel (petrol) injector cleaner and tester

The fuel injector tester is a mechatronics product that combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and detection technology. This product simulates various operating conditions of the engine and cleans and inspects the fuel injectors of various automobiles and motorcycles. This equipment is the necessary and preferred equipment for the automobile and motorcycle repair and maintenance industry.
Ultrasonic cleaning uses the penetrating and cavitation shock waves generated when ultrasonic waves propagate in the medium, and powerfully clean objects with complex shapes, cavities, and pores to completely remove stubborn carbon deposits on the fuel injector, and can test the leak, uniformity, and inhalation of the injectors. Discharging fluid faster.
The injector cleaning machine has an injector diagnostic function. It can be used for cleaning and testing four injectors at the same time. This function is to detect the atomization, dripping, blockage, and fuel injection angle status of the fuel injectors and the size and balance of the fuel injection of each fuel injector at different speeds.
The fuel injector cleaner tool has 11 main functions: Ultrasonic Cleaning; Medium Speed Test; High Speed Test; ldle Speed Test; Accelerating Test; Variable Speed Test; Leakage Test; ldle Spray Volume; Medium Spray Volume; High Spray Volume; Unit Info.

Note: Please refer to the instructions for specific methods and steps.

Working enviroment parameters:
Power supply: 220V±10%
Frequency: 50Hz
Relative humidity: <85%
Environment temperature: 0℃～＋40℃
External magnetic field strength: <400 A/m
No open flames are allowed around

Technical parameters
Tank capacity:1300 ml
Range of rotation:0 - 7500 r/min
PWM pulse width:0～20.0ms step 0.1 ms
Time:0～20 min
Cleaning frequency:40 kHz
Cylinder volume:100 ml
Injection times:0～9900 times, step 100 ms
System pressure:0～0.6 Mpa
Ultrasonic cleaning power: 70W

Package dimensions: 340 x 295 x 360 mm
