Rated power 25 W ±10 %
Suitable battery voltage 12 V
Open-circuit voltage 24.7 V ±10 %
Short-circuit current 1.14 A ±10 %
Maximum power voltage 22.12 V ±10 %
Maximum power current 1.13 A ±10 %
Conversion efficiency 23.5 %
Panel dimensions 415 x 300 x 17 mm
Suitable battery types GEL, Deep Cycle, SLA, Flooded, AGM, sealed lead-acid, LiFePO4 and wet batteries
Integrated reverse-current protection
PWM charge controller included
Water - and corrosion-resistant construction

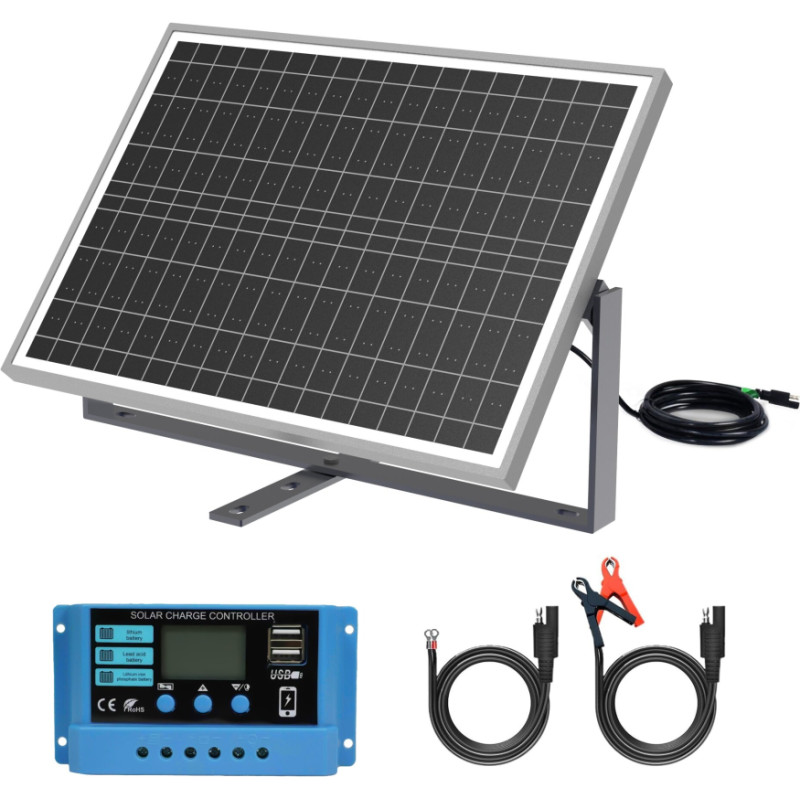

Set contains 25 W solar panel, SAE cable with battery clamps, SAE cable with ring terminals and PWM charge controller
The solar battery maintainer is designed to compensate for natural battery self-discharge and low-level power consumption when vehicles or equipment remain unused for extended periods
It is suitable for cars, motorcycles, boats, tractors, ATVs, trailers, lawnmowers, motorhomes, campers, gate systems, pumps and electric fences
The included PWM controller regulates the charging process and helps protect the battery against overcharging
Built-in reverse-current protection prevents the battery from discharging through the solar panel when sunlight is insufficient
This product is intended for maintaining batteries that are already in usable condition
It is not designed to recharge a completely discharged or defective battery
|
