Hydraulic flaring tool set 36pcs

Flare Coverage:
Invert (Standard) - 3/16", 1/4", 5/16", 3/8", 1/2"
Bubble (Metric) - 4.75mm, 6mm, 8mm, 10mm
Male Quick Connect (Ridge Bead) - 1/4", 5/16", 3/8"
GM Saginaw O-ring - 5/16", 3/8"
Transmission - 3/8"

Features:
- Upgraded piston for better quality flares
- Magnetic yoke & ball plunger to secure die set and anvil during set up
- Striation free / pressure fitting invert & bubble flare dies to prevent tube damage
- Pegged die sets to ensure set up

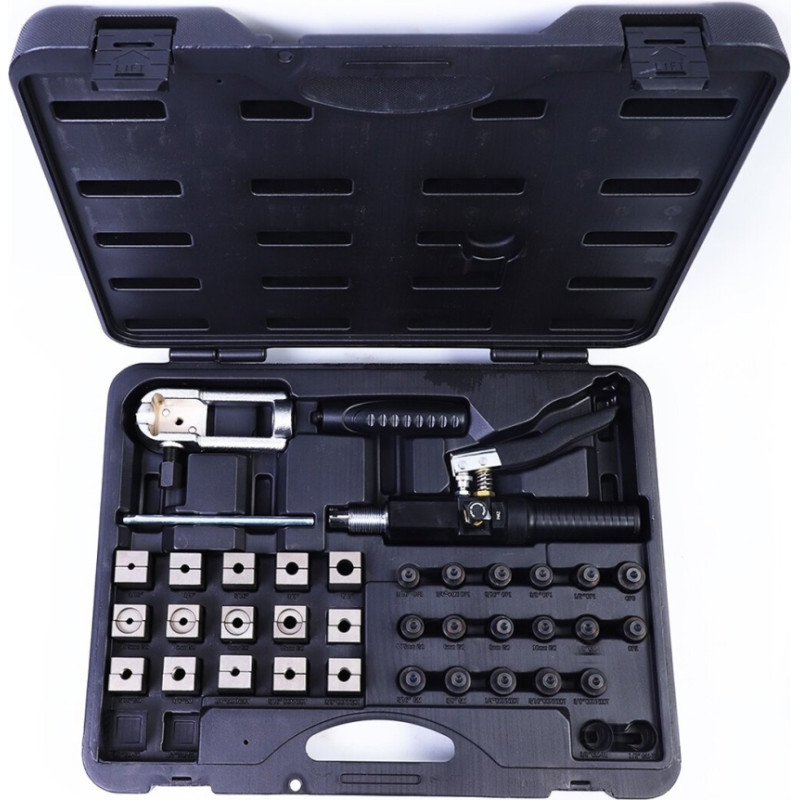

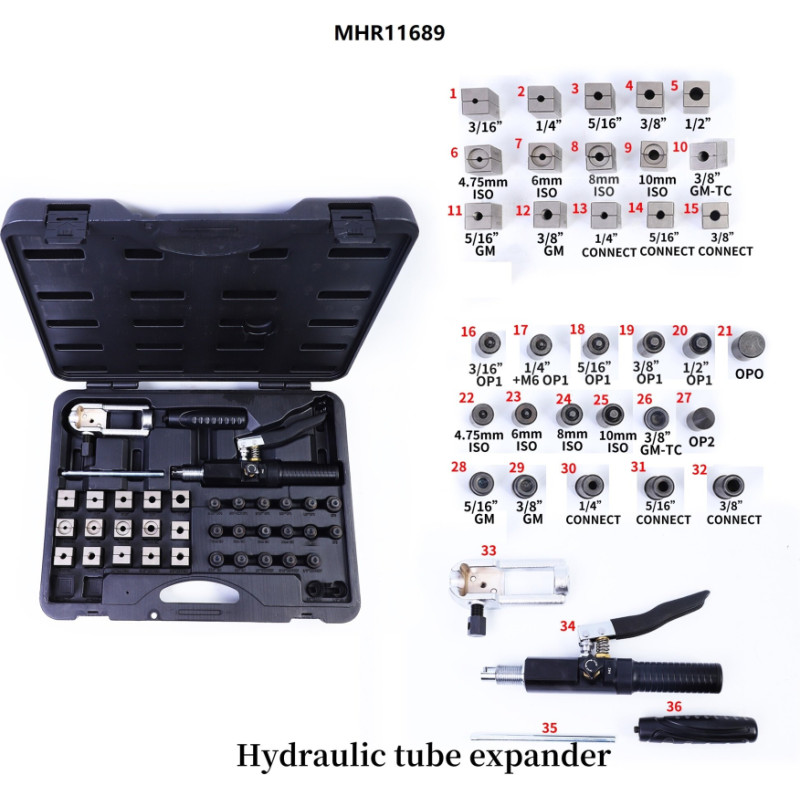

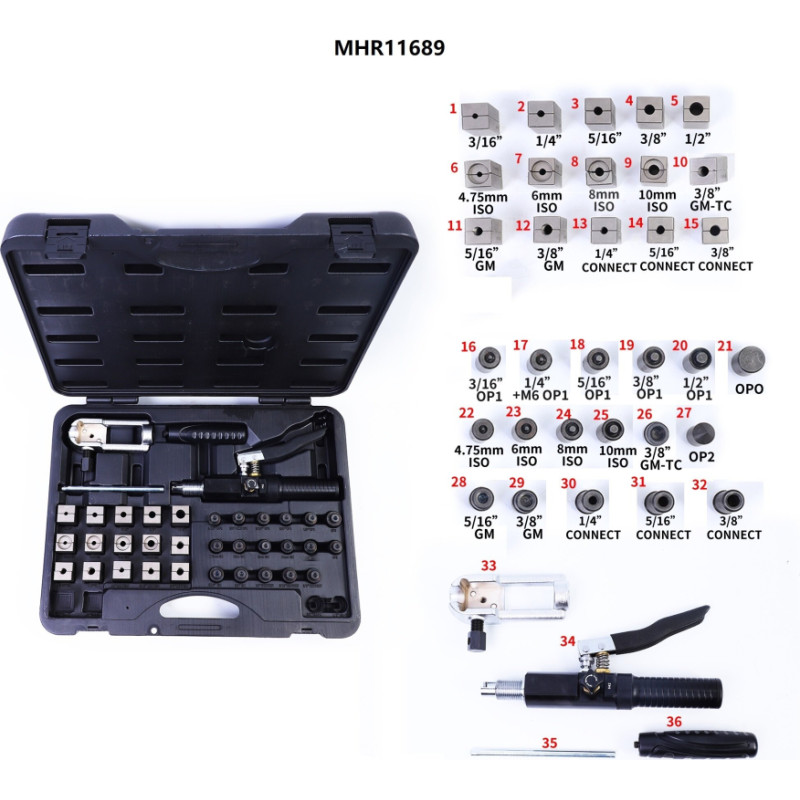

Includes: Universal Hyrdraulic Flaring Tool assembly, 15 pc. Dies, 17 pc. Adapters, and 1 pc. Storage case
Creates 45-degree single or double flares in 3/16-, 1/4-, 5/16-, 3/8-, and 1/2-inch tubing
Creates ISO/DIN bubble flares in 4.75mm, 6mm, 8mm &10mm tubing
Creates Push-Connect type flares in 1/4-, 5/16-, 3/8-
Creates GM style fuel line flares in 5/16- and 3/8-inch tubing
Designed for on- or off-car use with a hydraulic cylinder
For use when flaring steel and soft metal brake line, transmission cooler line, or fuel line tubing
