Alternating voltage 0-600 V a.c.
Direct voltage 0-600 V d.c.
Alternating current 0-600 A
Resistance 0-60 MΩ
capability 0-20 mF
Regularity 0-60 MHz
Continuity test 0-120 Ω
Conduction test yes
Diode test yes
Battery test yes
Low-pass filter VFC yes
TRUE RMS yes
Data Hold yes
Non-contact AC voltage detection NCV yes
Dimensions 191x70x31 mm
Material ABS
Max. clamp gap 26 mm
Max. diameter of the tested cable using the clamp 18 mm
Display type LCD
LED backlight yes
Display range 5999
Auto measurement range yes
Sampling frequency 2.5-3 times per second
Bell ring yes
Auto power off 15 min
Power supply battery cell type 2x1.5V; AAA
Weight 0.19 kg

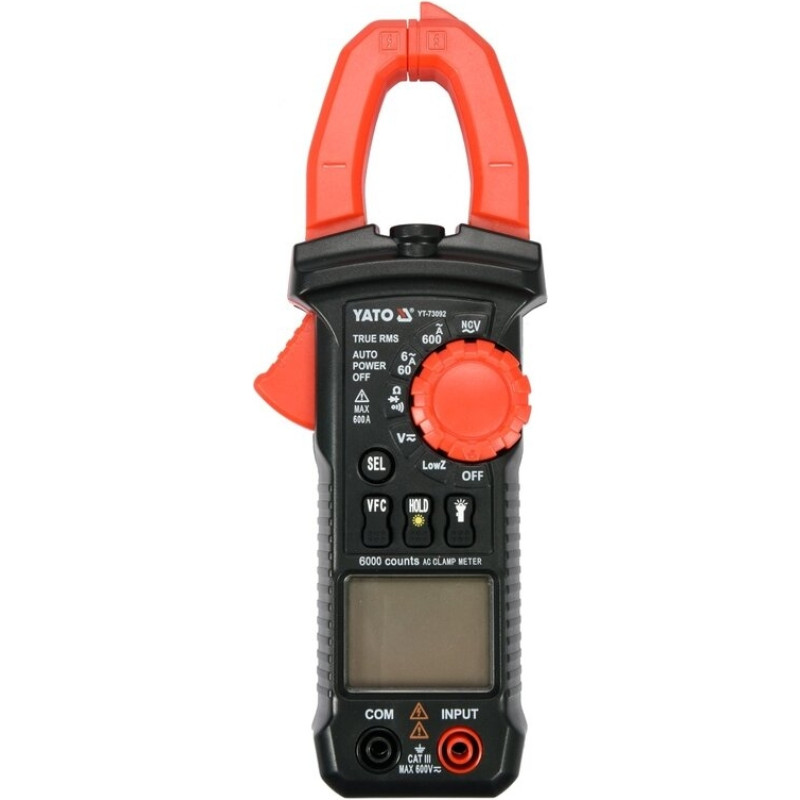

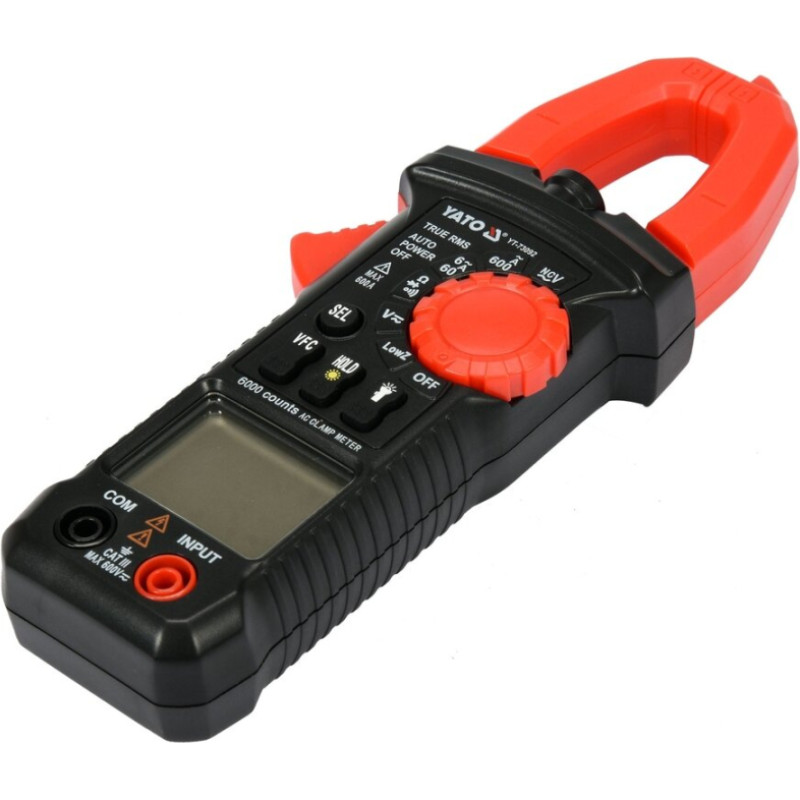

Universal clamp meter YT-73092 with automatic range for most indications allows you to perform basic and advanced electrical measurements. The meter is equipped with measuring clamps, which allow you to measure the AC current in a single wire using the inductive method. The measurement is carried out without disconnecting the circuit or disconnecting it from the power source, and makes it possible to measure a much higher current than conventional electrical meters.
Basic measurements:
AC voltage measurement: A.C. 0-600 V, TRUE RMS + V.F.C. + lowZ
DC voltage measurement: D.C. 0-600 V, LowZ
alternating current measurement: A.C. 0-600 A, TRUE RMS + V.F.C.
resistance measurement: 0-60 MΩ
diode test: IF 1 mA, UR 2.3 V
circuit continuity test: 0-120 Ω
Additional measurements:
AC voltage measurement in low impedance mode: A.C. 0-600 V
DC voltage measurement in low impedance mode: D.C. 0-600 V
non-contact AC voltage detection: NCV
Measurement accuracies:
Example of accuracy determination for AC current measurement. Calculation for the measurement result: 30 A
The measurement accuracy of YT-73092 meter for this range is : ±(2.5%+10), resolution 0.01 A
calculation of measurement error formula: (measurement result x 2.5%) + 10 x resolution
calculation: (30 x 2.5%) + 10 x 0.01 = 0.75 + 0.1 = 0.8 A
Actual result including measurement error for 30 A indication = 30 ± 0.85 A
Result including measurement error for AC voltage measurement indication: 235 V = 235 ± 3.3 V
result including measurement error for DC voltage measurement indication: 12 V = 12 ± 0.116 V
A table with the resolution and accuracy for the measurement can be found in the user's manual.
|
