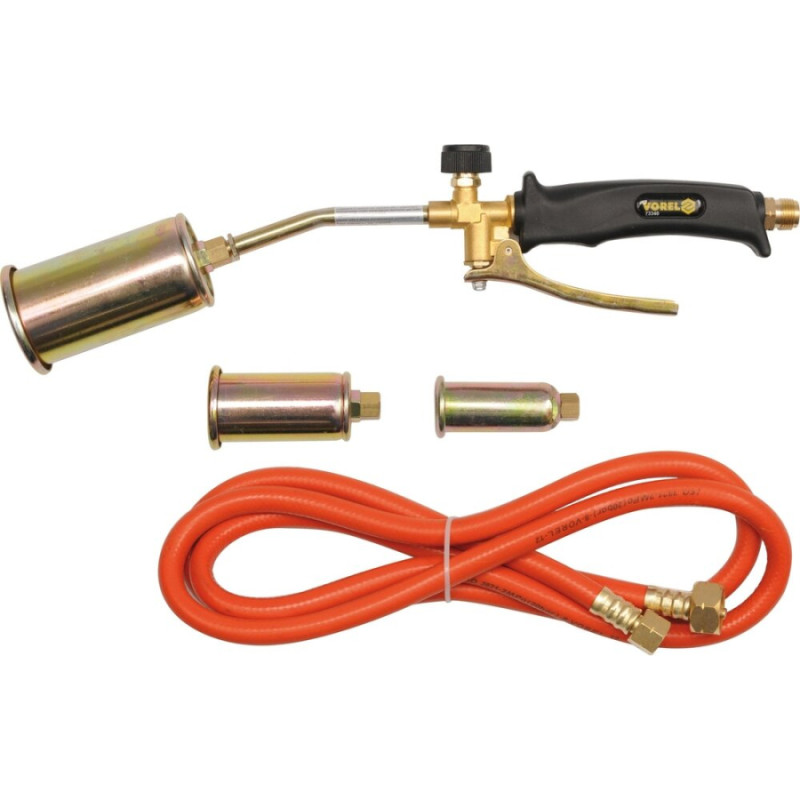

Basic set of short roofing burners 73340 designed for typical heat-sealed membrane installation work. Includes handle with valve lever labor saving, hose with connections to the cylinder and handle, and three flame nozzles for intense heating or tanning.
Gas burners are designed for heating, drying and roofing work. Thanks to powering with compressed butane cylinders (it is also possible to power with propane-butane gas mixture), it is possible to work in places without energy sources.
Powered by compressed butane cylinders (it is also possible to power with propane-butane gas mixture), it is possible to work in places without energy sources
Gas used: propane-butane, butane
Power: 53 KW
Flow adjustment with rotary valve and push-button
L = 360 mm
Consumption: 3785 g/h
Flame temperature: 1500-1800˚C
Package contents
Propellant (G3/8"-19)
Hose 2 m (G3/8"-19, 21.8-14)
Propellants 25mm, 35mm, 50mm
How to use
1. Assemble the device according to the instruction manual. Tighten the hose to the assembled device. Tighten the other end of the hose to the gas cylinder.
2. Tighten the hose to the gas cylinder
3. Check the tightness of the connections by slightly unscrewing the cylinder valve, then apply soapy water to the connections. If gas bubbles appear, turn off the gas supply and tighten the leaking connections. Repeat the procedure until complete gas tightness is ensured
4. Tighten the gas valve in the cylinder, then unscrew the appliance valve, but only enough to allow the gas outlet. Ignite the gas at the outlet of the cup. To do this, use a special lighter designed for lighting portable gas burners . After about 20 seconds, press the burner lever). If the flame is too short, adjust the gas pressure with the burner valve. After releasing the lever, the flame will return to economy mode.
5. After finishing work, turn off the cylinder valve, and then, after the flame is extinguished, set aside (put down) the burner on a non-flammable surface to cool down. After cooling down, proceed with maintenance.
6. Details of installation, operation and maintenance of the device in the attached instruction manual.
|
