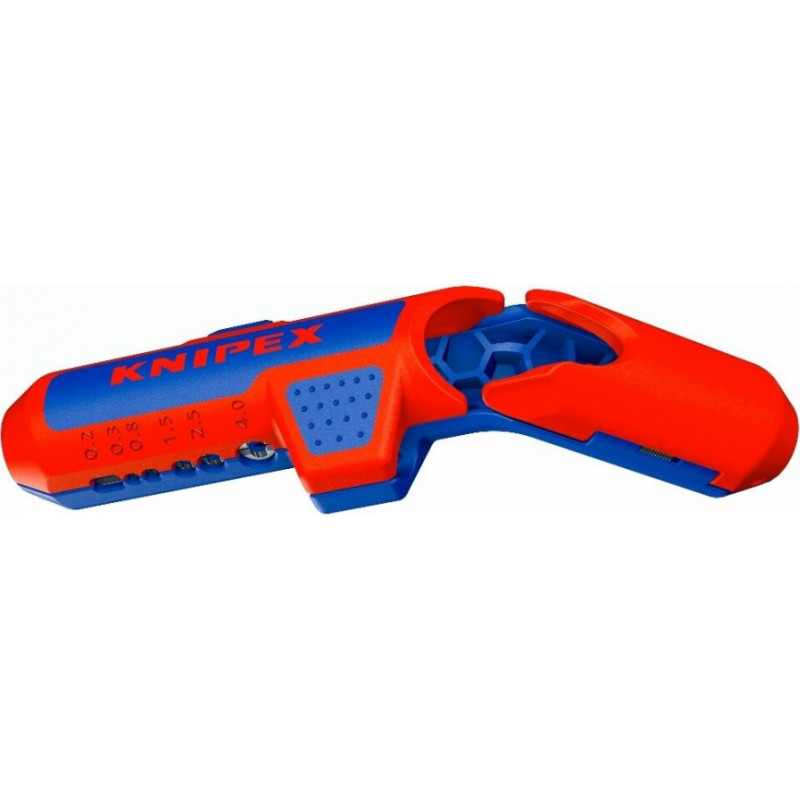

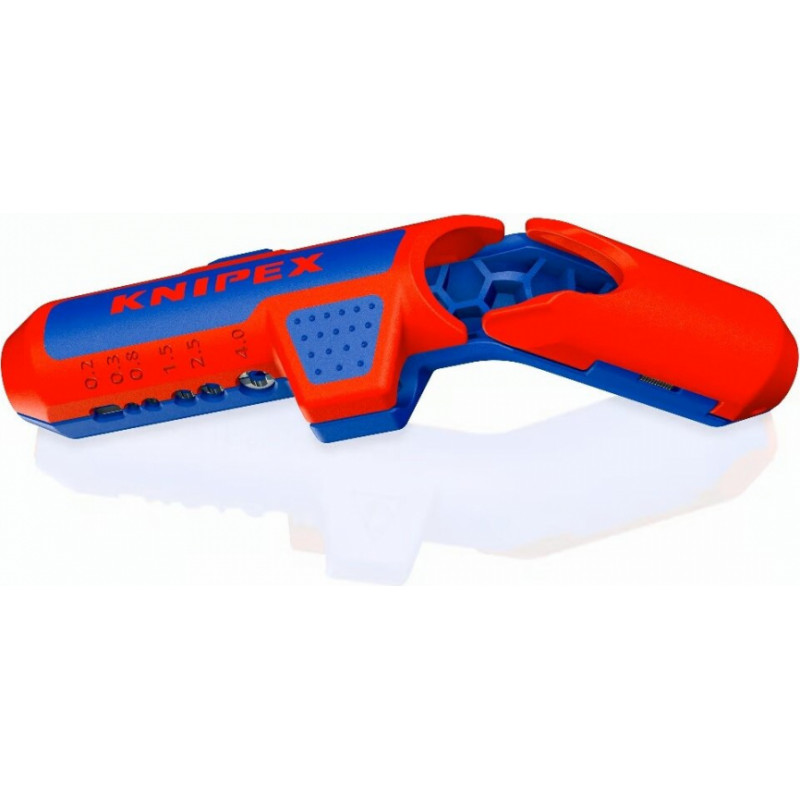

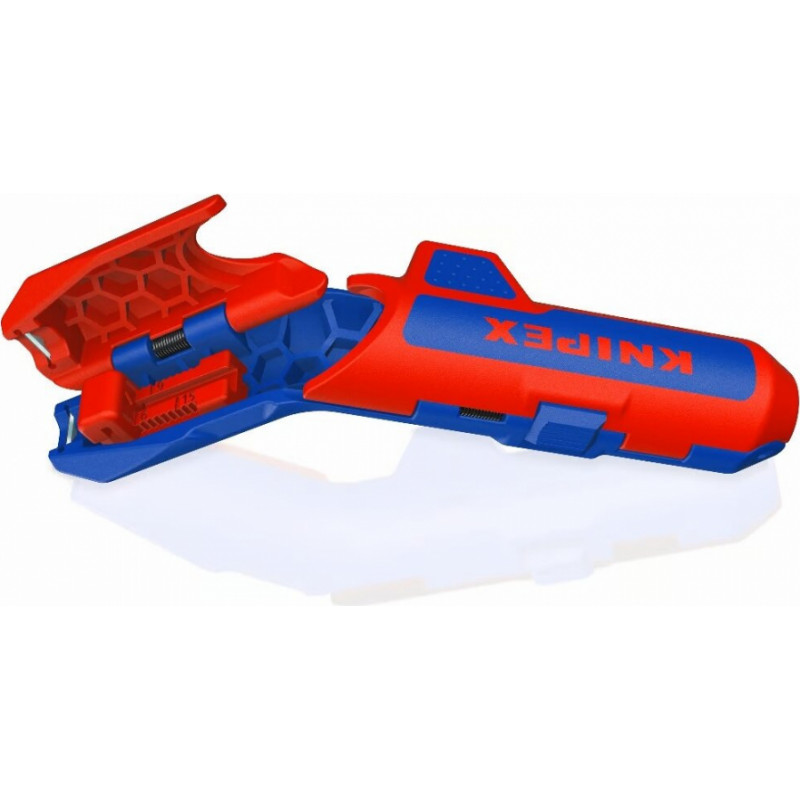

Knipex PV cable stripping tool KNIPEX ErgoStrip

Article No:. 16 95 03 SB
EAN: 4003773092605

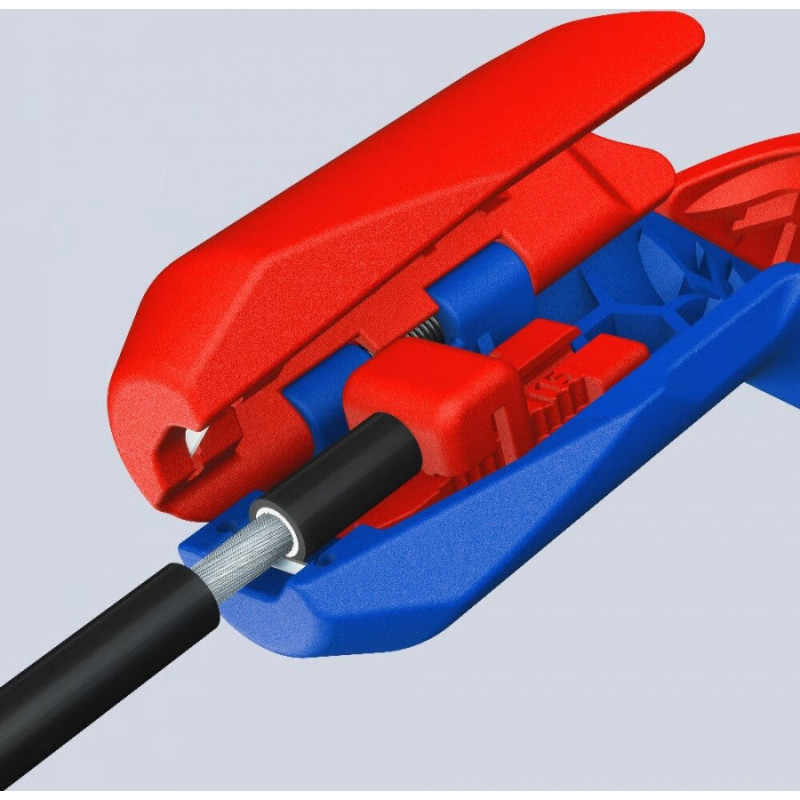

For fast and precise stripping of PV cables with 4 and 6 mm² (e.g. H1Z2Z2-K) and all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2.5 mm²)

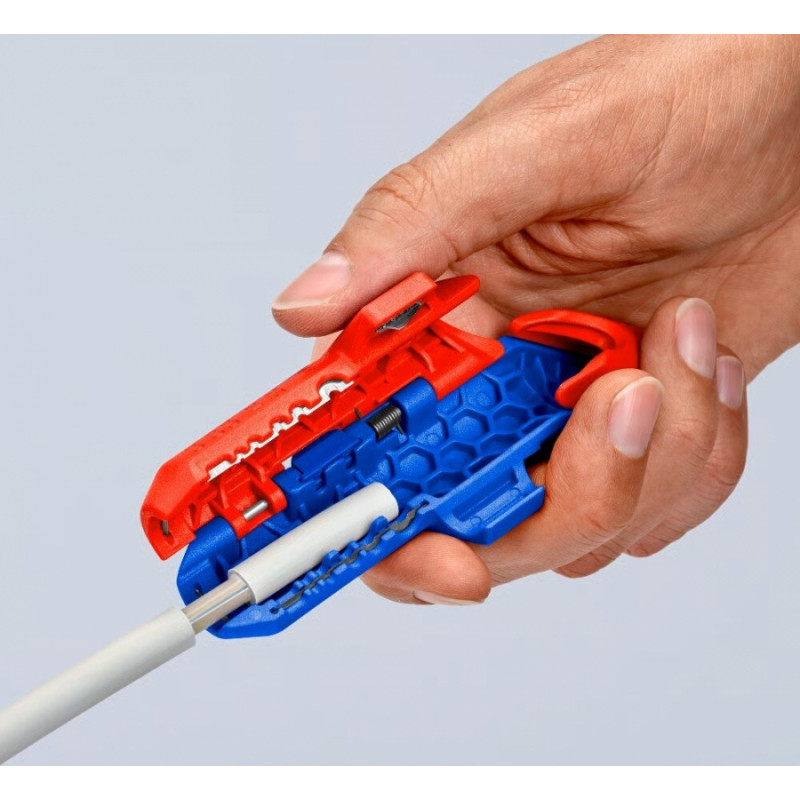

Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath
Length stop for PV cables: adjustable from 6 - 18 mm for repetitive stripping lengths, suitable for all standard solar connectors

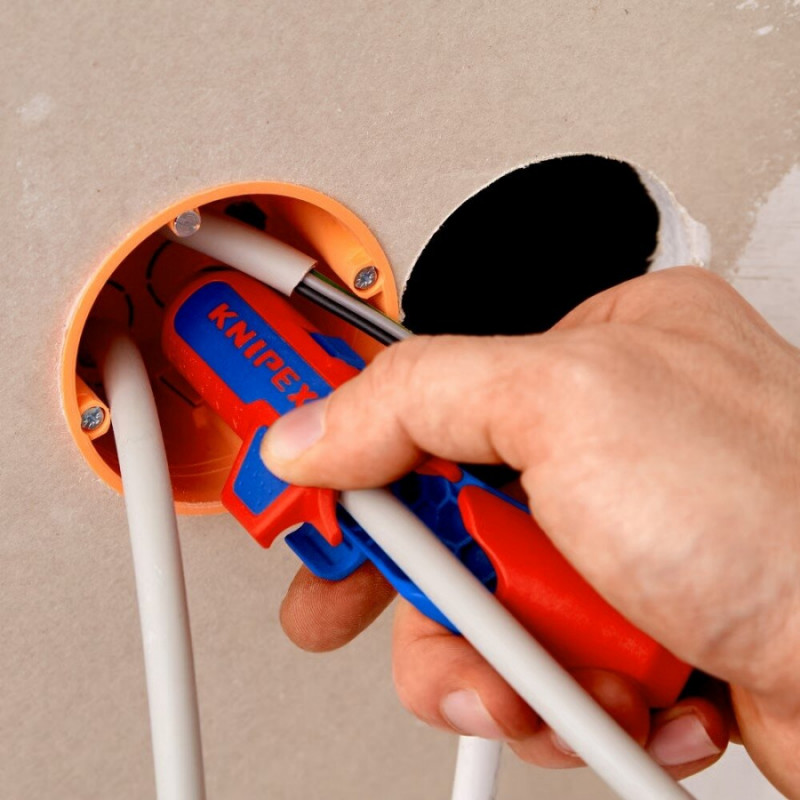

Conical, slimmed down tool ends for better access in confined areas
Wire stripping mechanism for PVC single conductors (e.g. H07V-K) with cross sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²
Simplified insertion of single wires for stripping using location ridges
With opening spring and locking device
Multi-component design with a soft plastic zone for comfortable use and a secure grip
Stripping capacities round cable Ø 8 – 13 mm
Dimensions 135 x 85 x 38 mm
Weight 65 g
