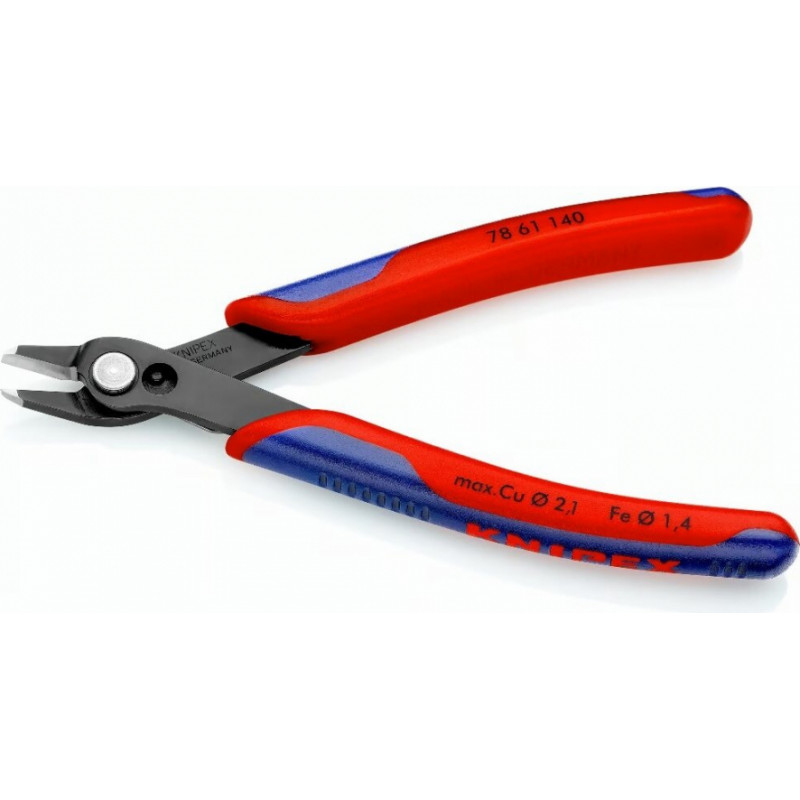

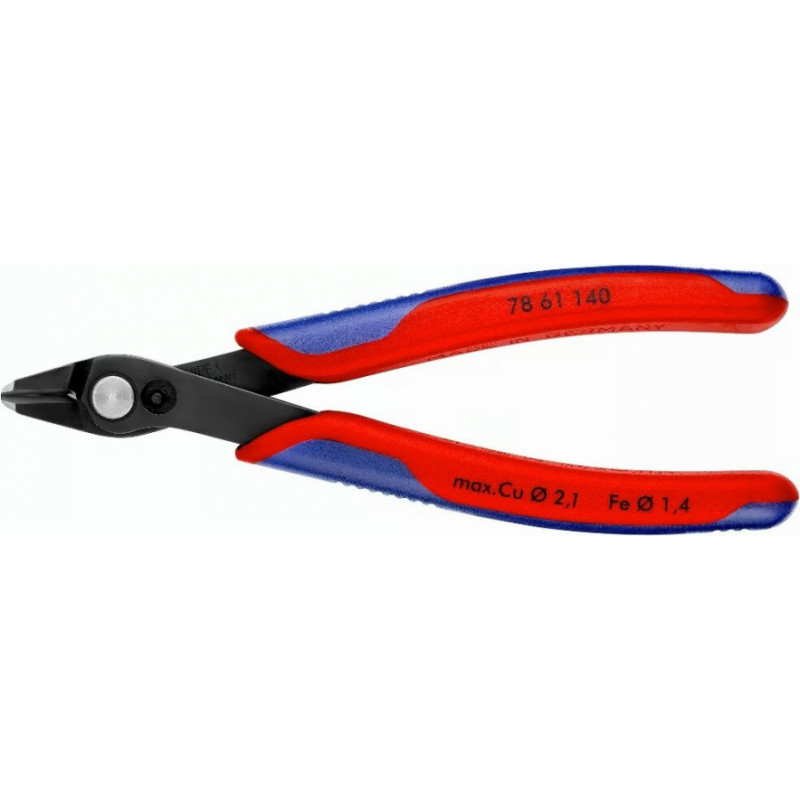

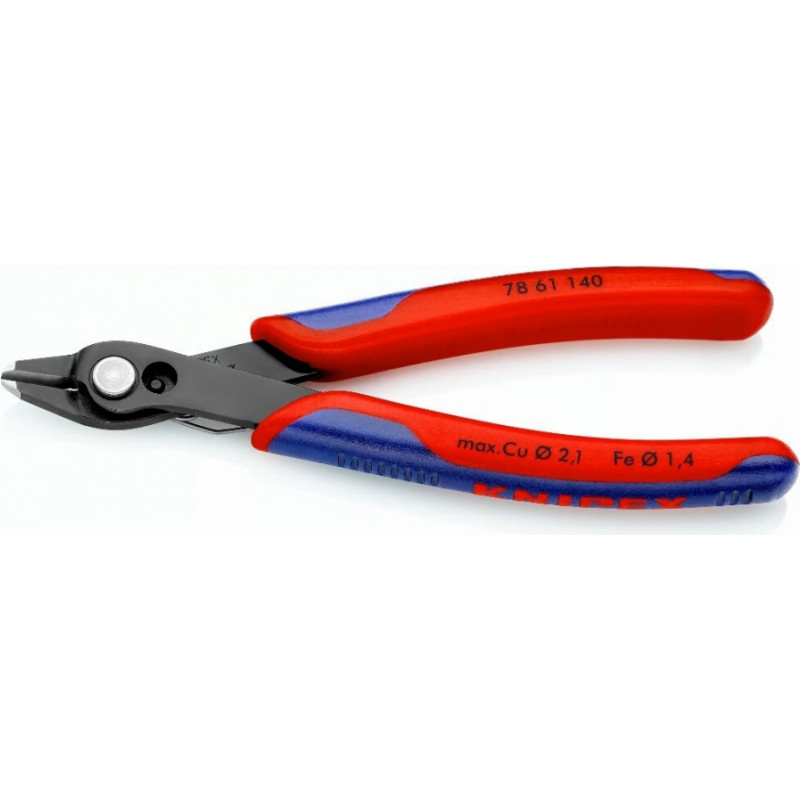

Knipex Electronic super knips 140mm KNIPEX

Article No.: 78 61 140
EAN: 4003773081685
Additional 15 mm longer version: greater stability, greater cutting performance

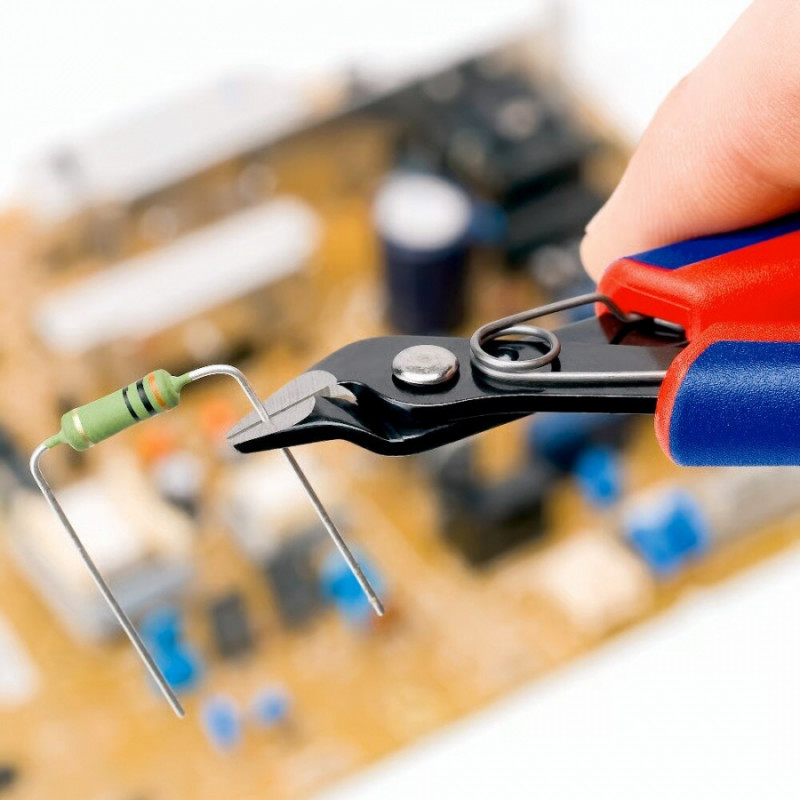

For ultra fine cutting work, e.g. in electronics and fine mechanics
In particular for cutting cable ties to length
Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
Precision-ground cutting edges without bevels with precisely shaped tips cut adjacent wires from Ø 0.2 mm precisely and evenly
Joint with stainless steel rivet
Extremely smooth movement for minimum operator fatigue
With opening spring and opening limiter
High load capacity, made of burnished special tool steel, cutting edges additionally induction-hardened to 64 HRC
Length 140 mm
Width 83 mm
Height 14 mm
Weight 85 g

Cutting capacities:
Medium hard wire Ø 1.4 mm
Soft wire Ø 2.1 mm

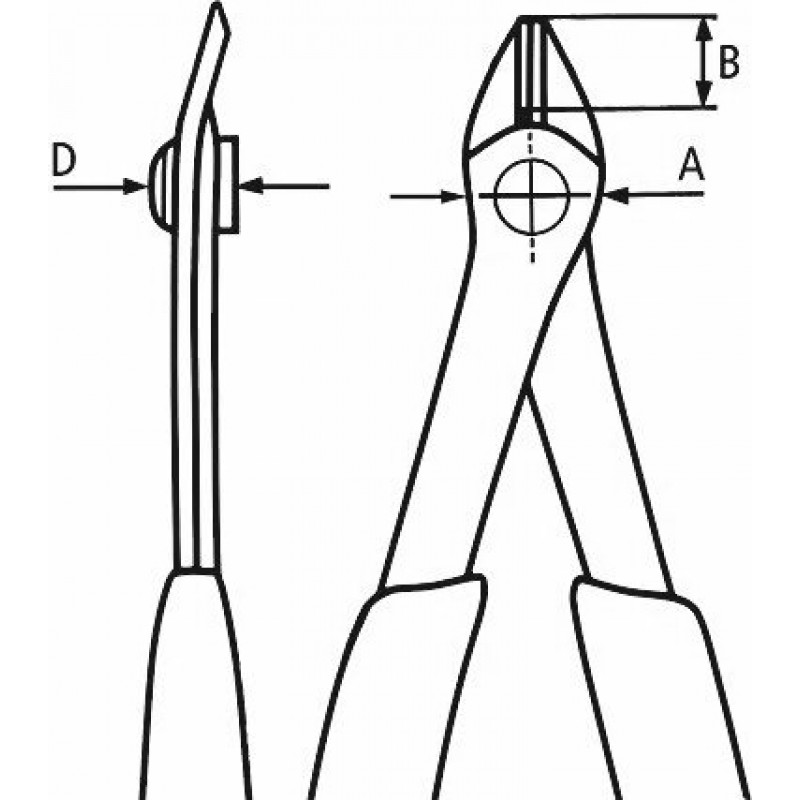

Jaw Length (B) 12.3 mm
Jaw thickness (D) 9.2 mm
Head width (A) 15.7 mm

Extremely sharp cutting edges made of rustproof, air-hardened stainless steel

The Knipex Electronic Super Knips® is made of surgical steel (INOX steel). For cutting level to surfaces, the cutting edges are ground without a bevel and hardened to approx. 54 HRC. Thanks to the precisely machined tips, even fine wires that are in contact with housings or components can be cut precisely. Dexterity is required when working on electronic components and in fine mechanics. Thanks to its friction-free torsion spring, the Knipex Electronic Super Knips® 78 61 140 is so smooth-action that the force can be controlled very finely when working on electronic components and in fine mechanics. The opening spring and opening limiter make work even easier. Important for electronic work: ESD grips on the handles enable slow, controlled equalisation of any differences in electric potential between the user and sensitive electronic components.

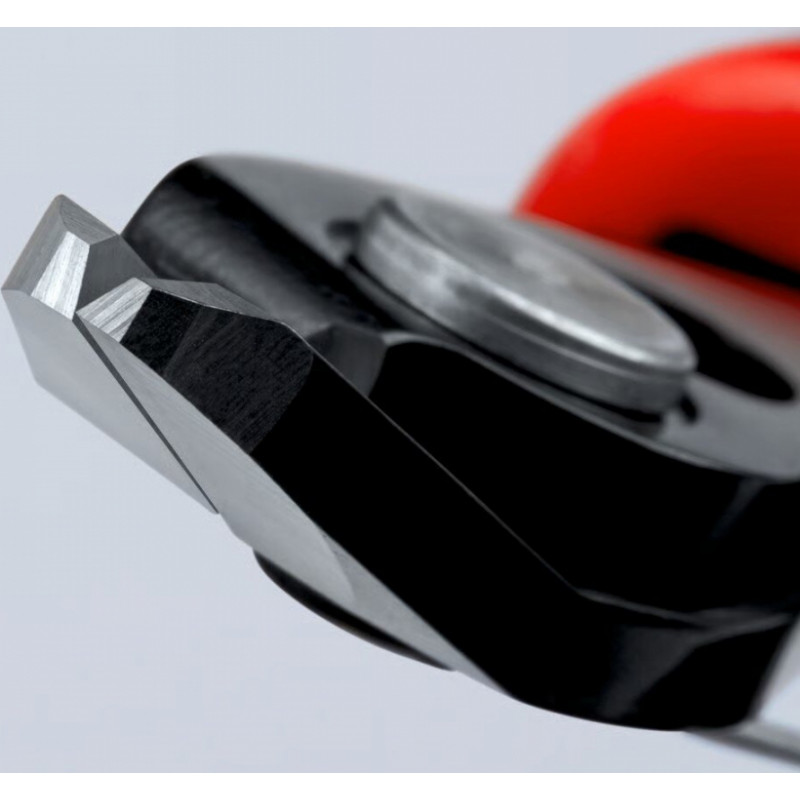

A special detail ensures a precise cut and a long service life

A special detail enables ultra-precise shear cuts on even the thinnest wires while also lending the pliers a long service life: The extremely sharp cutting edges of the Electronic Super Knips® 78 61 140 are protected against collision after cutting thanks to a micro-cutting edge offset.
