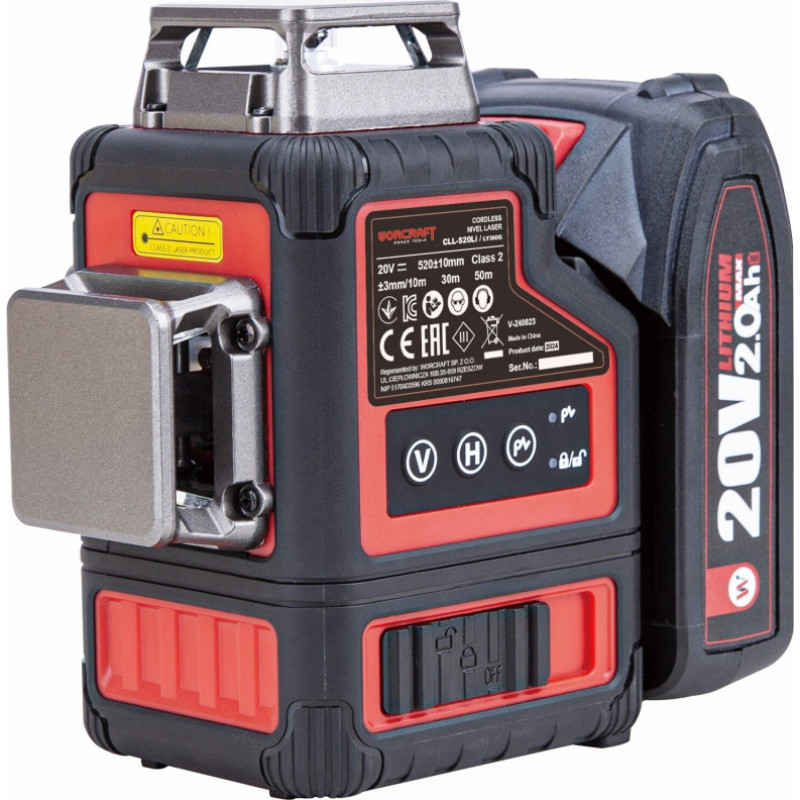

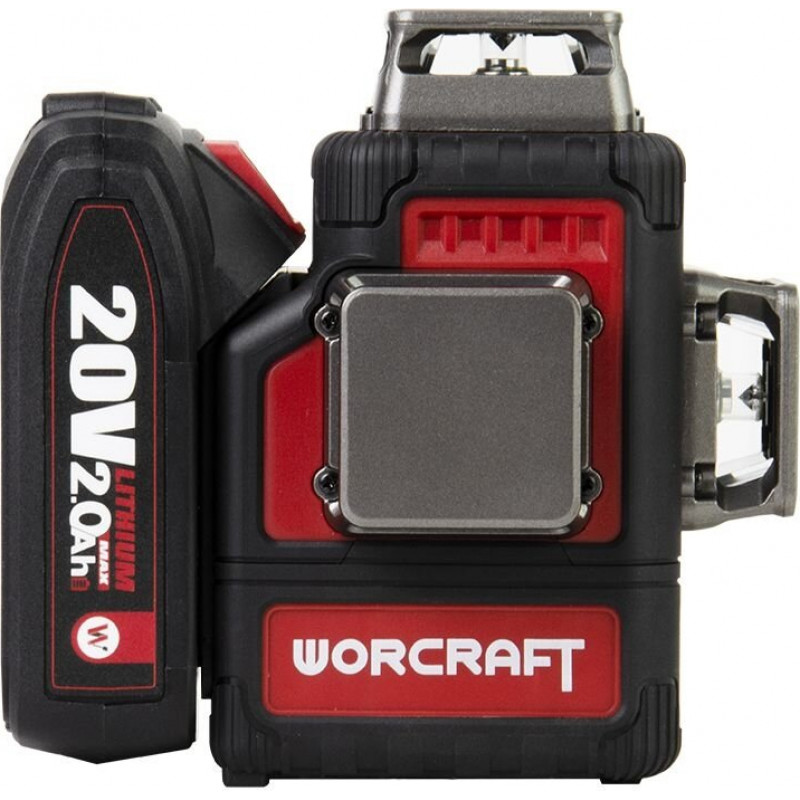

The WORCRAFT CLL-S20Li 3D cordless laser level is an excellent assistant for constructing planes, equipped with 12 green spectrum laser projections.
Two 360° vertical projections and a 360° horizontal projection allow you to perform a wide range of tasks - from designing interior partitions and doorways to installing plaster beacons and installing screed.
The basic operating range of the level is 30 m, and the pulse mode in combination with a repeater allows you to increase the effective working distance to 50 m even in the case of outdoor use.
The strong case made of high-quality plastic is distinguished by improved ergonomics and stability. The size of the case is 445 x 320 x 170 mm
Can be combined with XCUBE system
The 360° horizontal plane projection , located at the top of the device, allows you to accurately mark the horizon when installing stretch and suspended ceilings, as well as when performing installation work at height.
Two mutually perpendicular vertical planes at 360° provide convenience during the design and installation of interior partitions and openings, and also allow you to control the accuracy of internal and external corners in the room. Additionally, you can determine the zenith and nadir points, which makes it possible to transfer the marking from the floor to the ceiling and back.
The pendulum lock allows you to project lines at any angle, turning the device into a convenient laser marker, and also protects the mechanism during transportation.
Pulse mode allows you to expand the operating range of the device when used with a repeater (laser signal receiver).
The automatic leveling system corrects the horizon and vertical within 5 seconds if the initial deviation does not exceed ±4°.
If the installation angle is exceeded by more than ±4°, a flashing signal is activated.
Ease of use is provided by an intuitive interface, which allows you to quickly set up the device for operation.
The bright green laser has optimal visibility for the human eye, making working with projections comfortable and effective at distances up to 30 m .

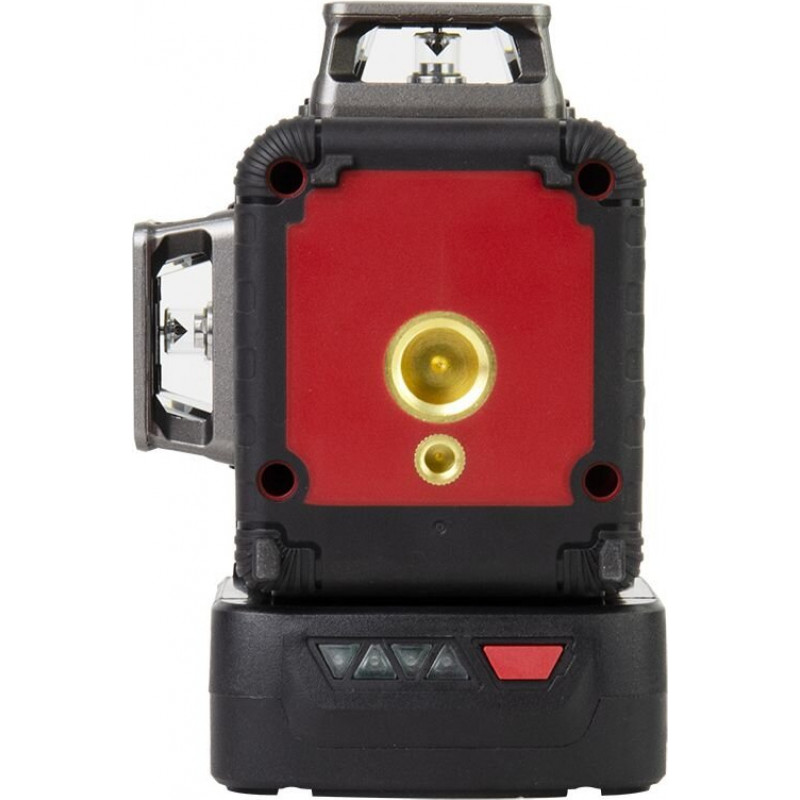

Two built-in sockets with 1/4 " and 5/8 " threads allow you to mount the device on various mounts , such as a tripod, magnetic holder or microlift , which expands its application possibilities.
The emitting windows are additionally reinforced with high-strength metal , which ensures durability and protects the optics from damage.
High-quality laser module and optics.
Ergonomic and compact rubberized case made of impact-resistant ABS plastic.
Reinforced metal threaded mount block for tripod or multi-function holder.
High degree of protection against dust and moisture IP54.

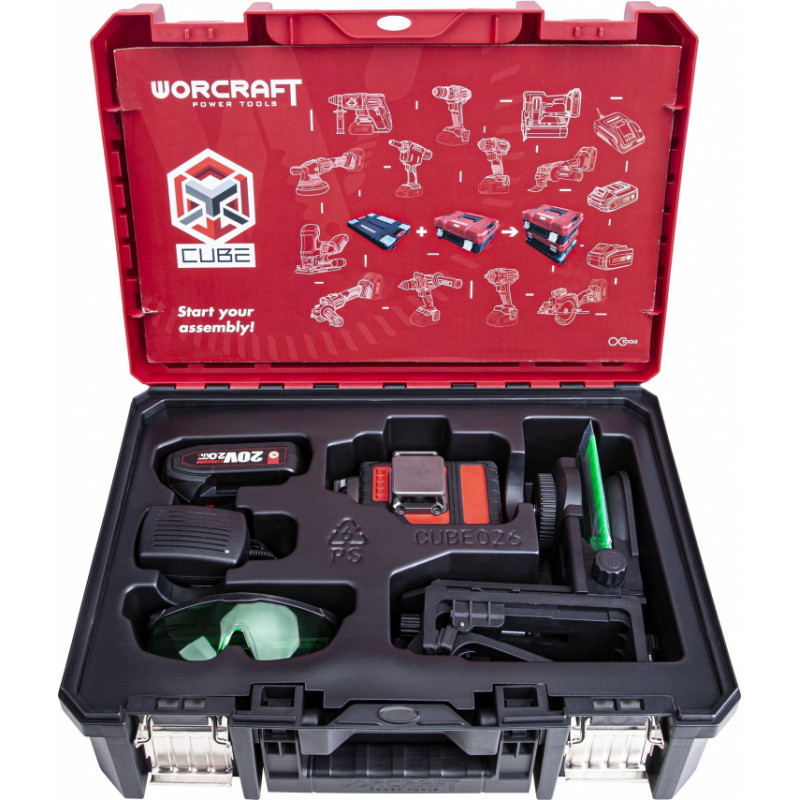

The WORCRAFT XCUBE026 set includes:

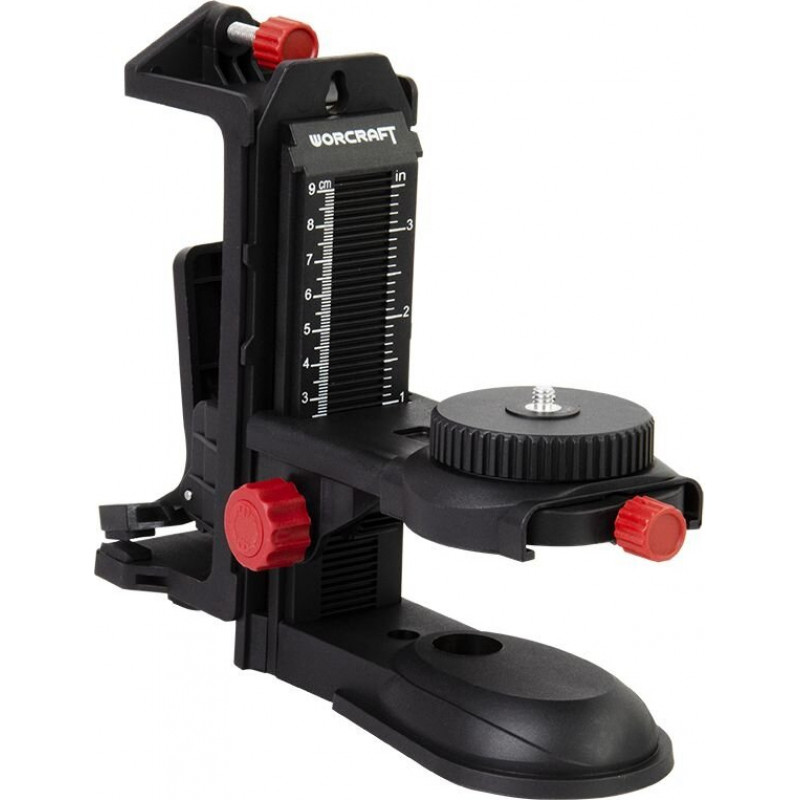

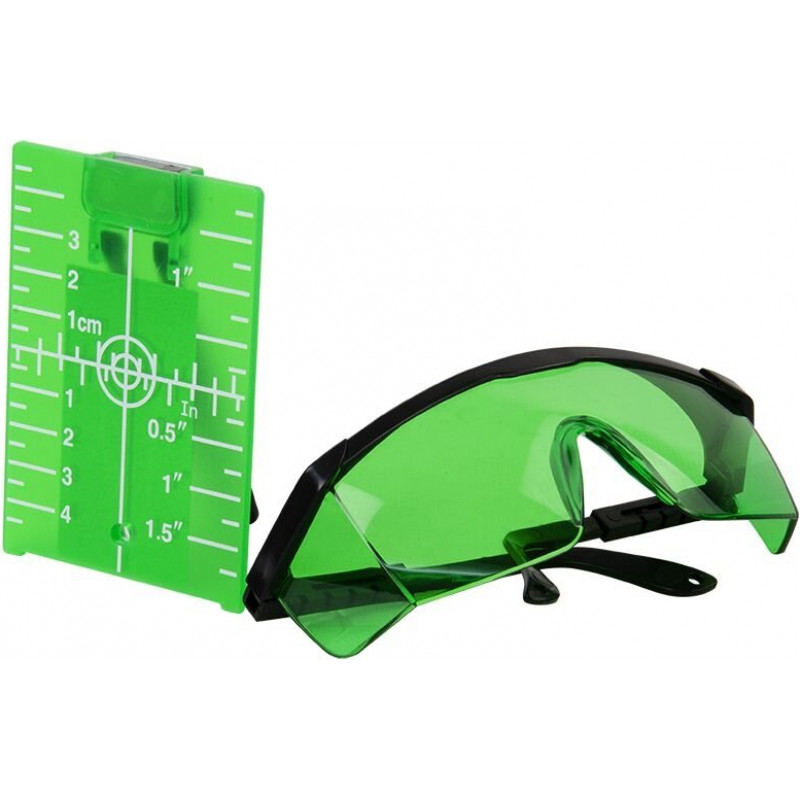

Cordless 3D laser level CLL-S20Li; Charger CLC-20V-1.5; Rechargeable battery CLB-20V-2.0H; Safety glasses reduce strain on the eyes and ensure safety during work. Target with magnetic attachment. Multifunctional holder with a large number of settings and adjustments The durable case made of high-quality plastic features improved ergonomics and durability. The case size is 445 x 320 x 170 mm.
- 12 beams (360° horizontal plane projection + 2x360° mutually perpendicular vertical projections)
- Laser beam color green (wavelength 520 nm)
- Working range 30m
- Self-leveling ± 4°
- Self-leveling time 4-5 s
- Tripod holes 1/4 " and 5/8 "
- IP54 rubberized ABS plastic housing with metal elements
- Projection deviation up to ±0.3 mm/m
- Battery + Charger + Case + Accessories

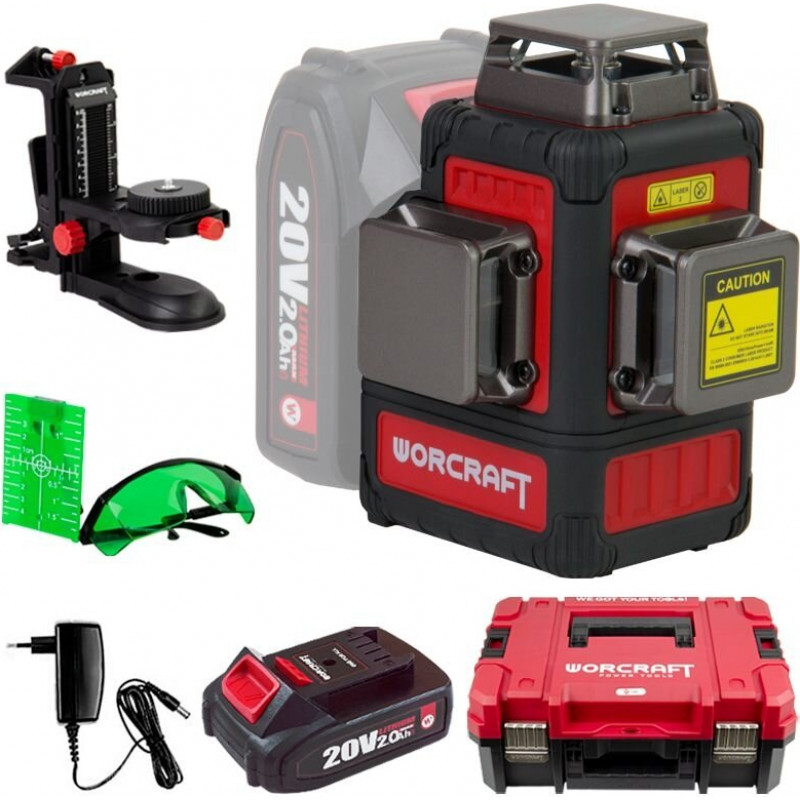

Equipment:
Cordless 3D laser level WORCRAFT CLL-S20Li; clip/magnetic stand; laser target with markings; glasses to increase the visibility of the laser beam; rechargeable battery CLB-20V-2.0H; charger CLC-20V-1.5; case; packing box;
|
