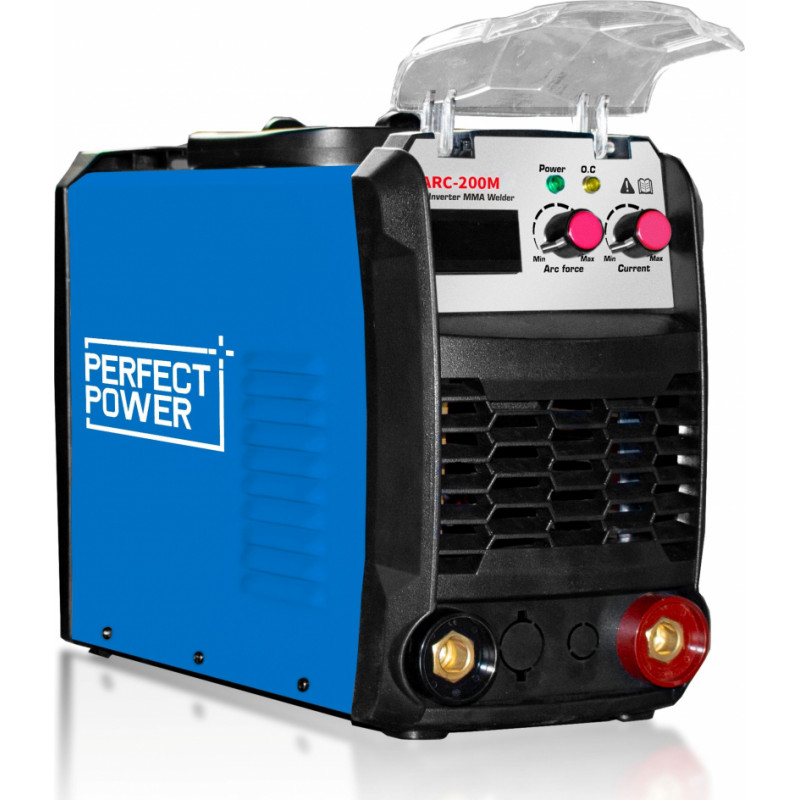

Puli Inverter welding machine (IGBT) MMA Mosfet

Function: welding with electrode / tungsten electrode in the inert gas
The machine can weld stainless and carbon steel, steel, copper and other color metal
Up to 4.0mm can be welded seamless
In the set included: power supply cable 2 m, electrode torch 1.8 m, 1.2 m ground wire, welding mask and brush

Supply voltage 230 V, 50 Hz
Rated input current MMA 32.0 A
No-load voltage 65 V
Output current MMA 20 – 180 A
Rated input voltage MMA 28.8 V
Duty cycle 35 / 60 / 100 %
Applicable electrode 1.6 - 5.0 mm
Weldable metal thickness 1.5 - 12.0 mm
Gas Ar, He
Protection grade IP21S
Electrical insulation class F
Dimensions 465 x 270 x 330 mm

Weight 6.5 kg
CE conformity
