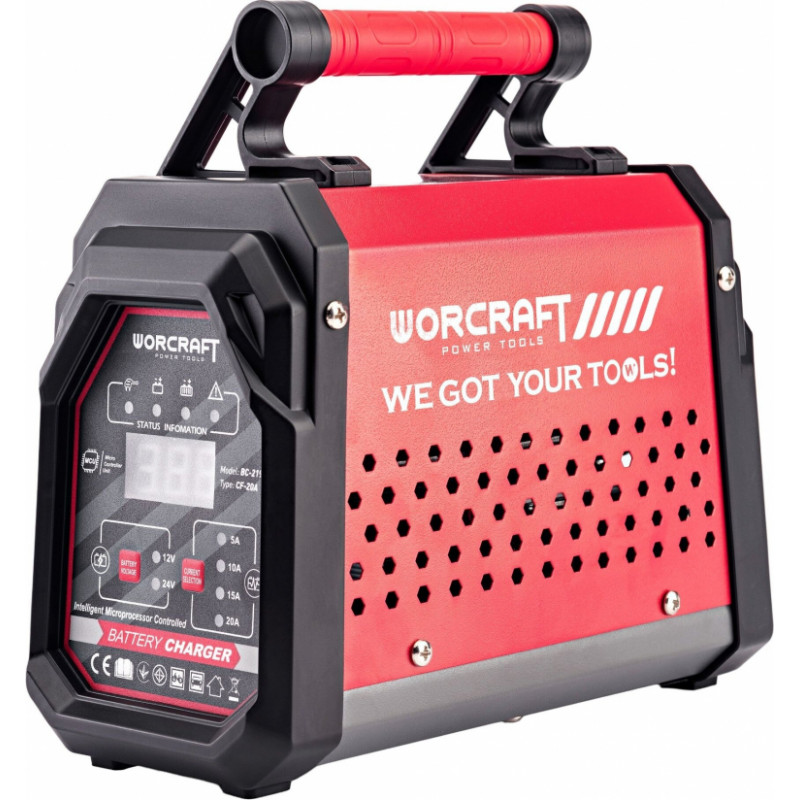

Battery charger 12/24V 20A 10-300Ah

WORCRAFT BC-219 Car Battery Charger - Charges and restores lead-acid batteries of cars, motorcycles and boats with a voltage of 12/24 V and a capacity from 10 Ah to 300 Ah.

It has stable characteristics and is equipped with protective functions for convenient and safe operation.

Basic parameters
- For 12 and 24 V batteries, capacity 10-300 Ah
- Charging voltage 14.4 / 28.8 V
- Charging current 5 / 10 / 15 and 20 A
- Smart charging
- Functional control panel
- Triple protection system

WORCRAFT BC-219 car battery charger
Efficiency and versatility:
Multi-stage charging mode in 3 stages:
Intelligent Microprocessor Controller (MCU) for smart charging - analyzes the battery condition, determines and sets the required voltage and current for effective charging or battery recovery.

I - Small charging current, the value of which is "floating". At this stage, charging begins with a small current for harmless charging or battery recovery.
II - Charging with a constant charging current value.
III - Charging with a constant voltage value. This stage completes the charging procedure, while the charging current becomes smaller and smaller.
The versatility of the device allows it to be used for 12 and 24 V batteries .

4 modes with current strength of 5 / 10 / 15 and 20 A for charging batteries with a capacity of 10 to 300 A-hour.

WORCRAFT BC-219 car battery charger

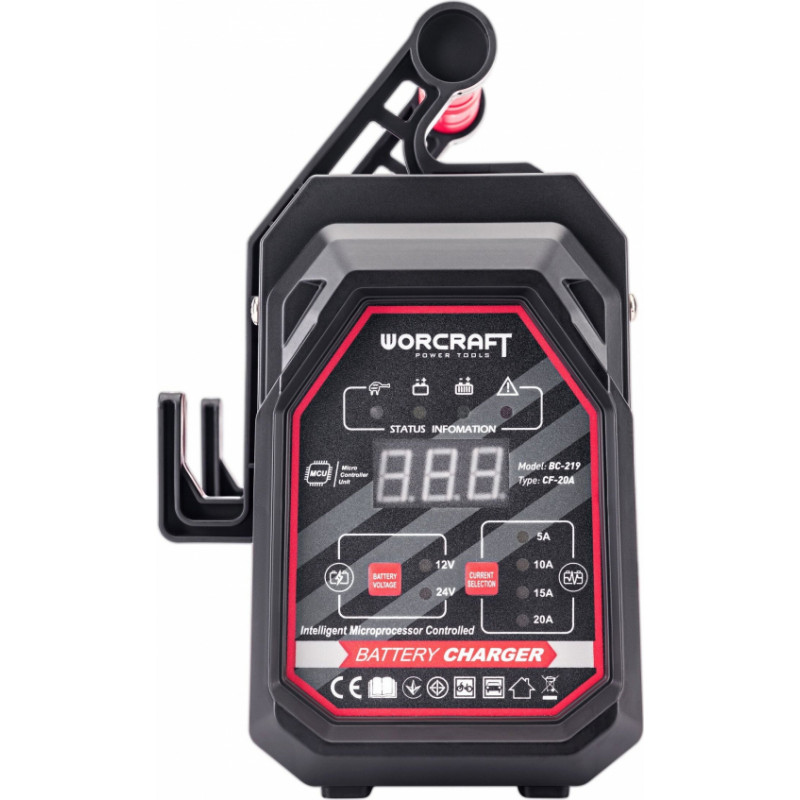

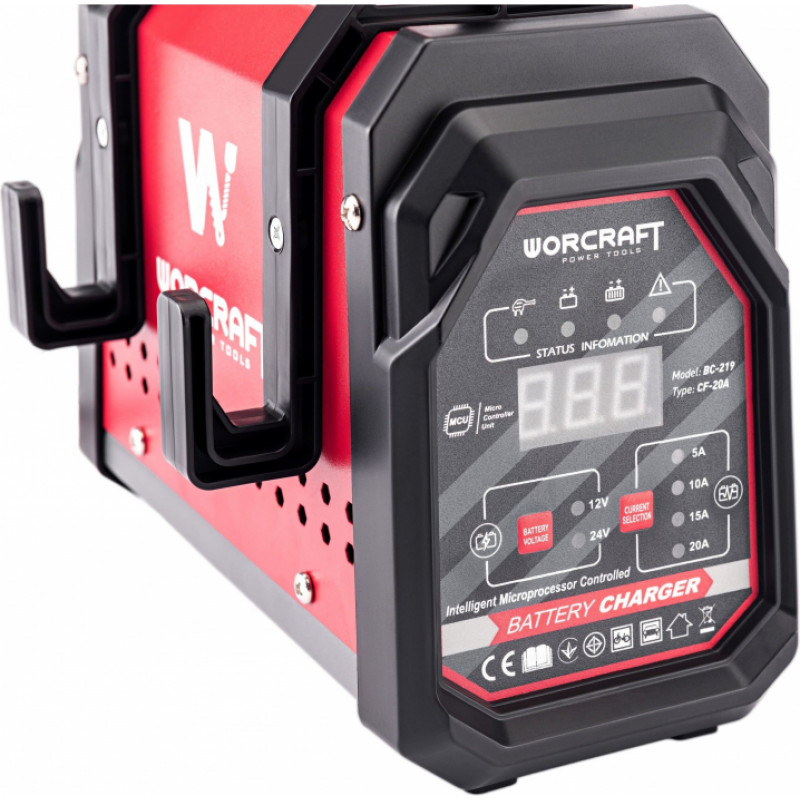

Functional control panel:
4 separate indicators: power, charging, full charge and emergency indicator.
The LED display helps you monitor the parameters during the charging process.
Voltage selection button with 12 and 24 V indicators.
Charging current selection button with indicators 5 / 10 / 15 and 20 A.

Triple protection system:
From overload - automatic shutdown when peak performance is reached.
From short circuit - if the terminal clamps are closed, the voltage supply stops, the voltage selection buttons are blocked, and the screen displays the value 0.0 V.
From reverse polarity - if you accidentally reverse the polarity when connecting the terminals to the battery, the voltage will stop, the red emergency indicator will light up, and the screen will display "Err".

Convenience and reliability:

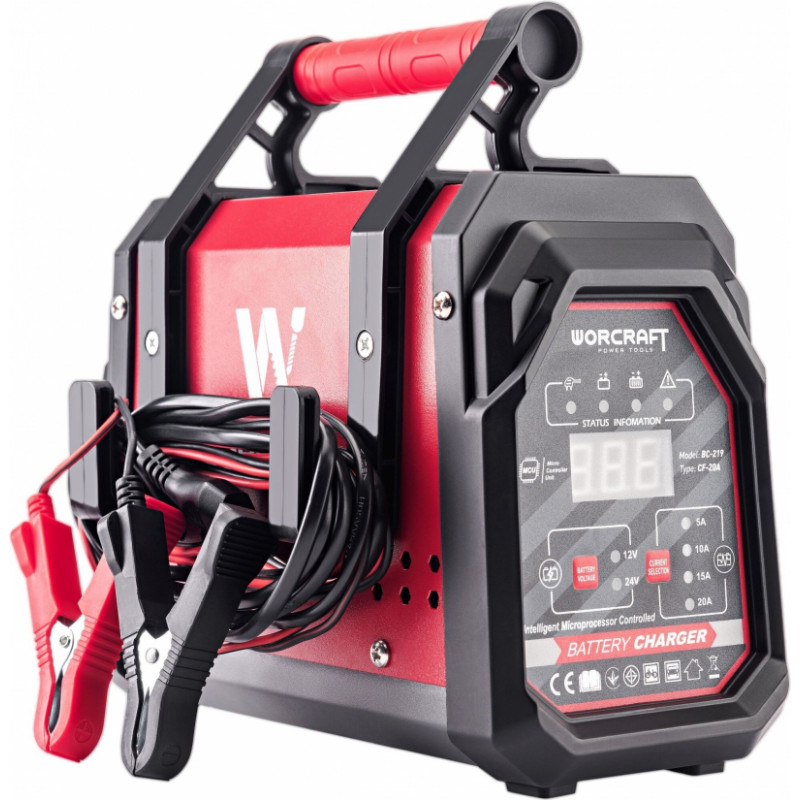

Bracket for storing cords.
Ergonomic handle for easy transportation.

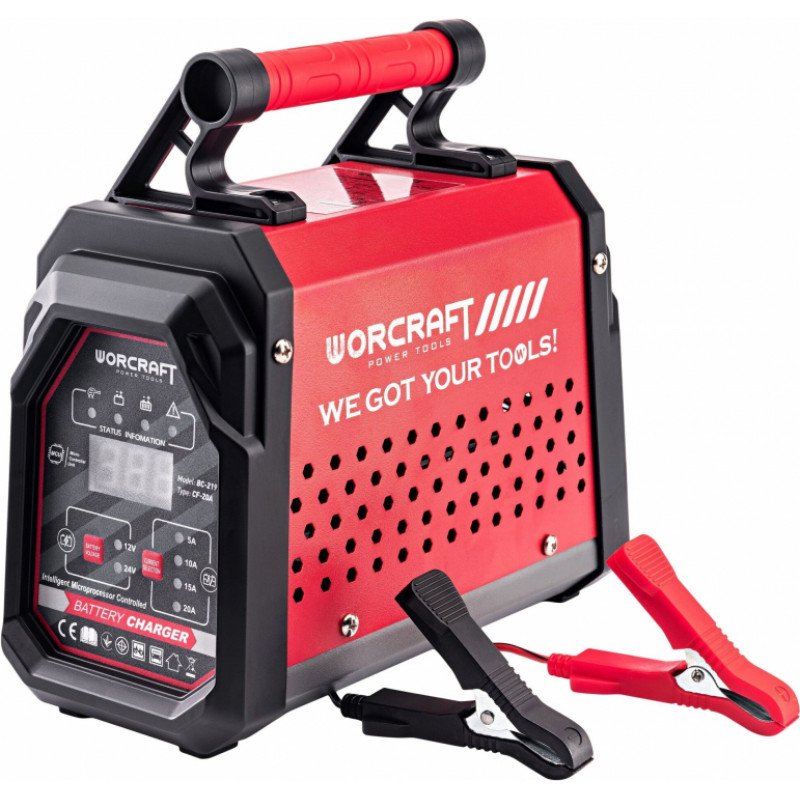

Clips with cords 150 cm long.
Sturdy metal housing with ventilation holes.

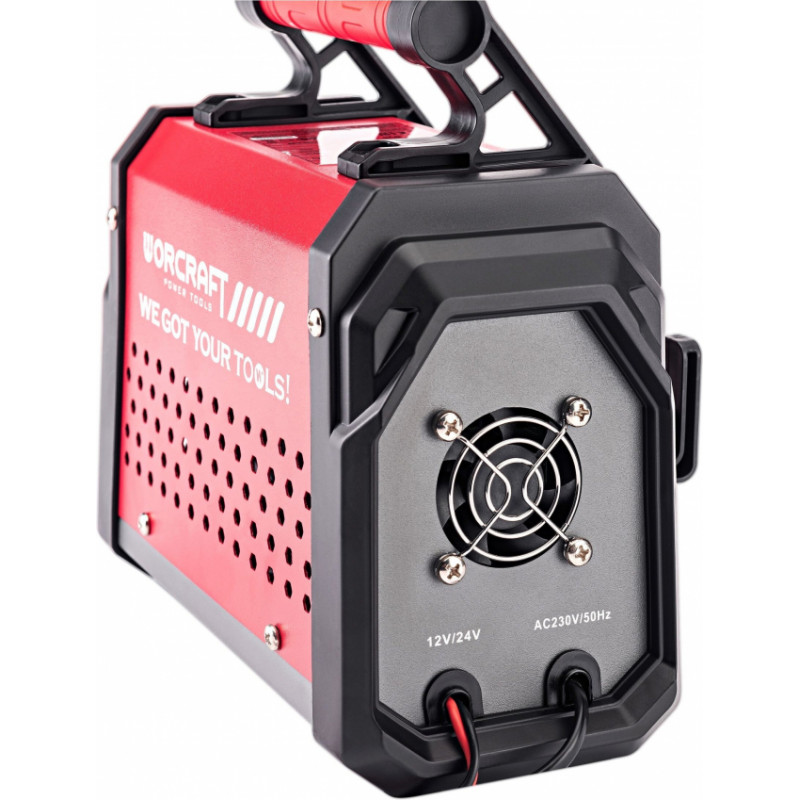

Modernized cooling system.

Equipment:
Car battery charger BC-219
Operating instructions
Warranty card
Packing box
